Long Service Life Push Back Racking Industrial Adjustable Metal Racks Warehouse Storage Steel Pallet Shelves

Essential details

Product name: Push Back Racking
Place of Origin: Jiangsu, China
Brand Name: Peterack
Model Number: Multi-Level
Type: Push-Back Pallet Rack
Material: Steel
Feature: Corrosion Protection
Use: Industrial
Thickness: 1.8-3.0mm
Weight Capacity: 800-3000kg
Width: 1500-3500mm
Height: 2550-15000mm


Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PR- ML04

  • Peterack

Push Back Racking


               Product Name
Storage Racking
Style
Push Back Racking
Brand
Peterack
Colour
Blue,white,orange,green,etc.
Material
Steel
Place of Product
Jiangsu Province,China
Feature
Corrosion Protection
Packing
Export Package
Size
Customizable
Application
Widely used in heavy industries

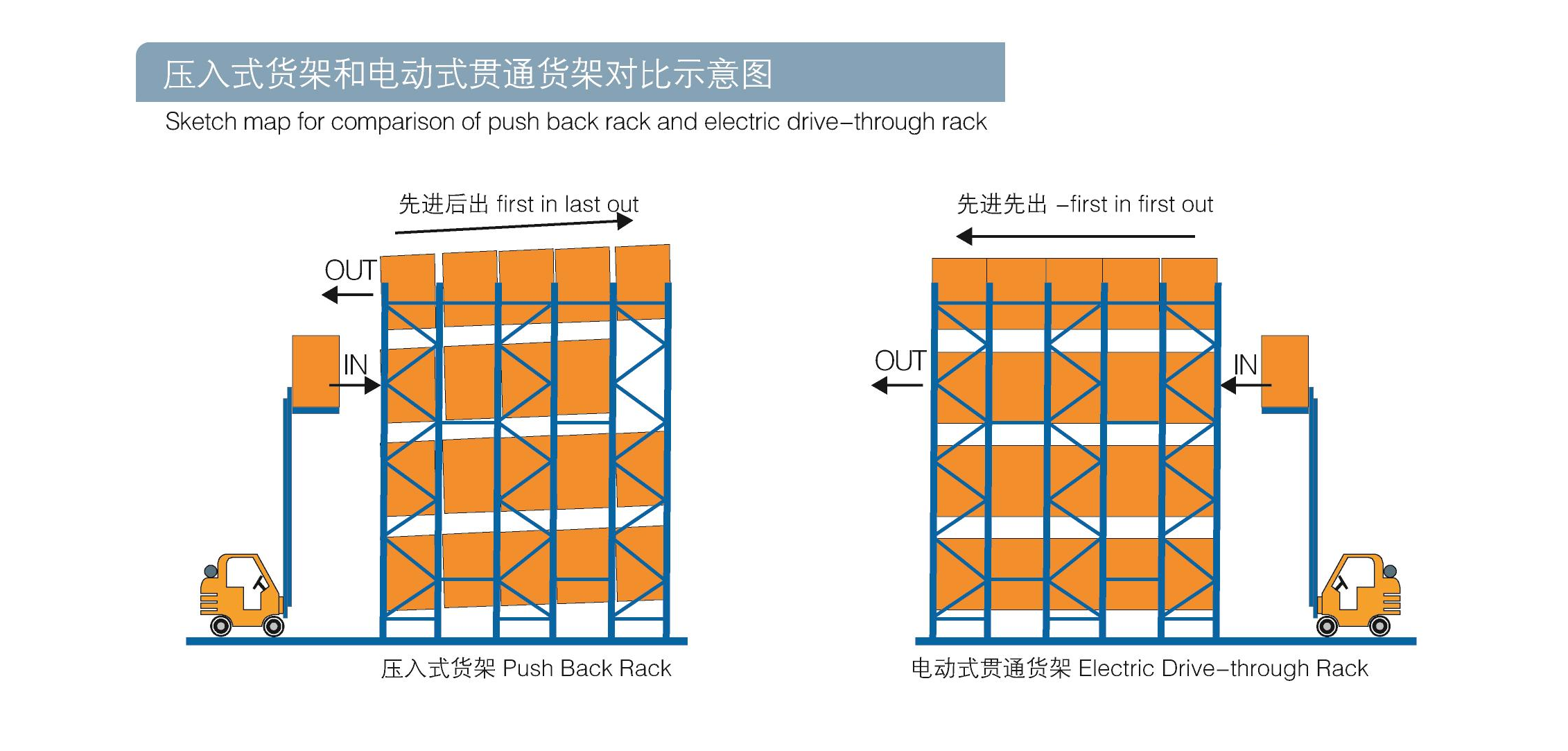

There are multiple layers trolley connected with the front and rear beam in the push back rack. The material box or pallet is put on the trolley from outside, and the subsequent material box will push the prior inside. The trolley crosses the leaning track.When the outboard material is taken, the inside trolley will slide down automatically. This push back rack can storage much material with high space occupation rate, which is suitable for few type while large quantity goods. The operation method is first-in-last-out. The in and out are in the same side.

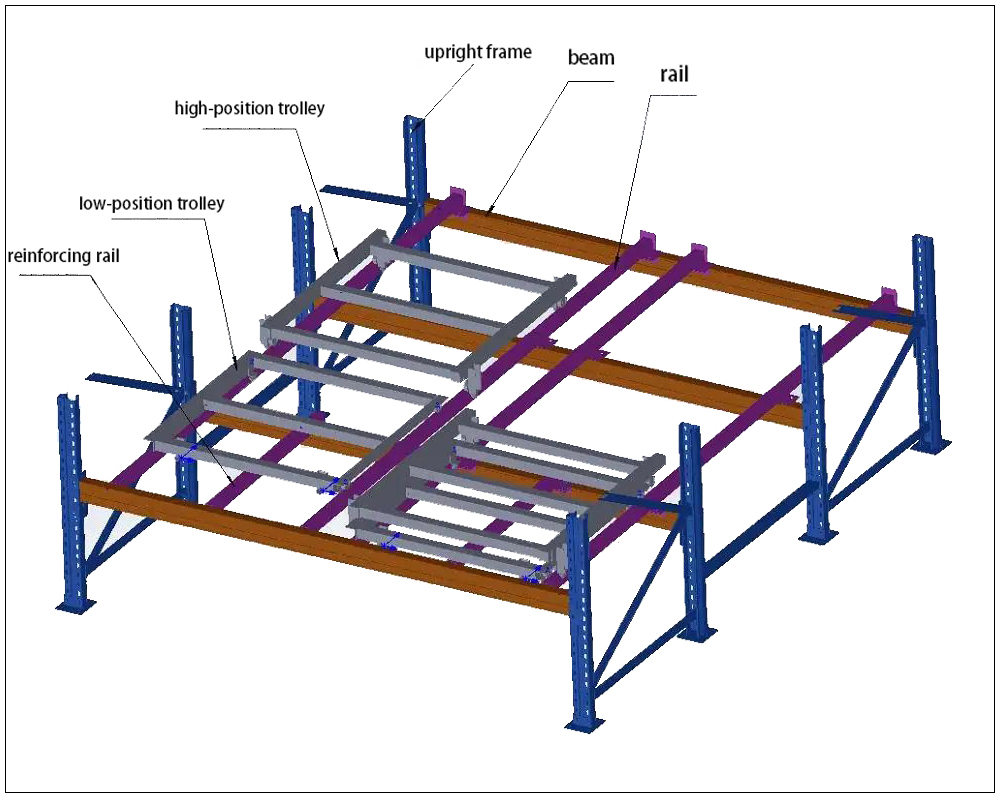

结构图

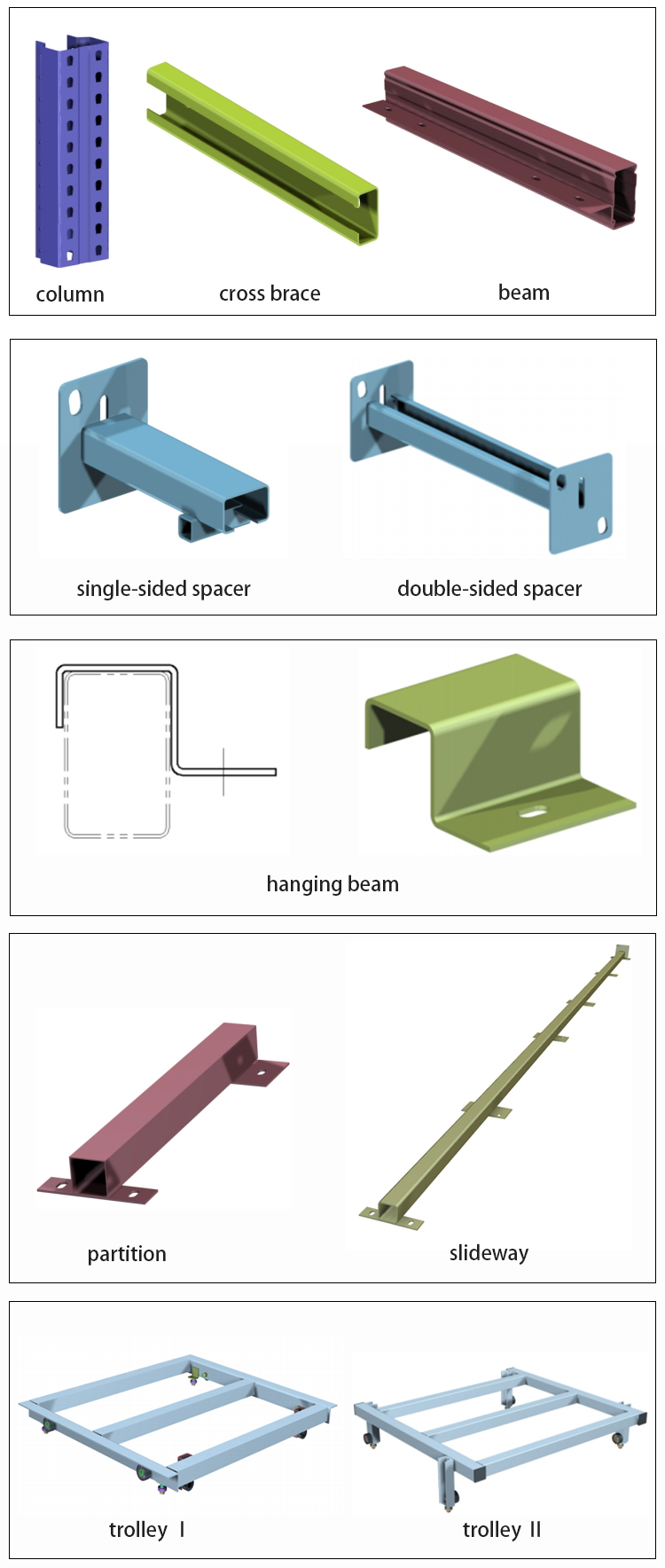

压入式货架配件

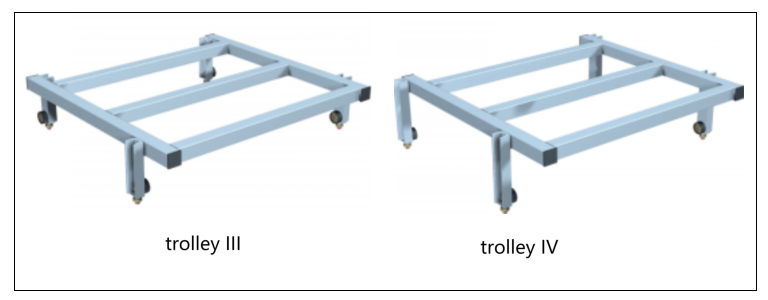

1683362771009

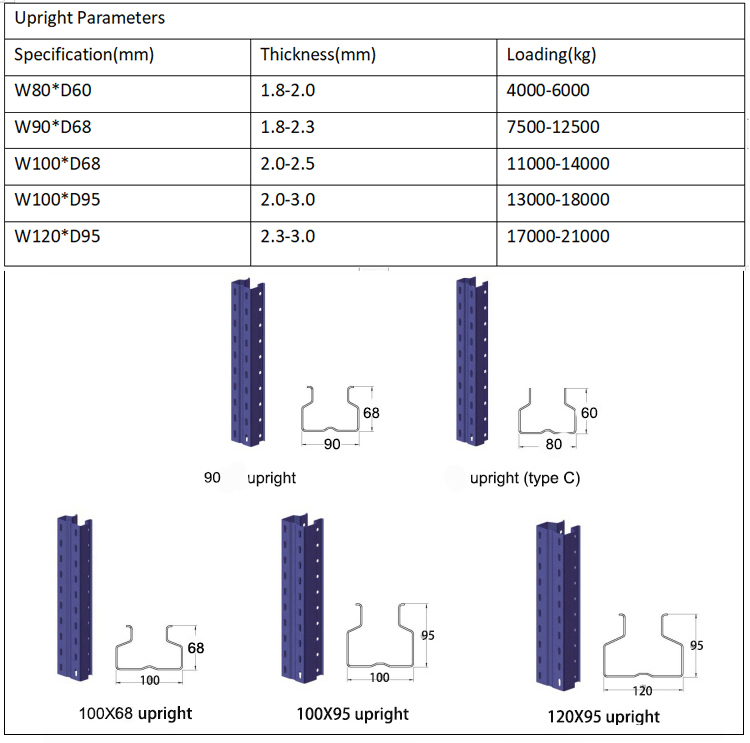

立柱参数

压入式货架配件

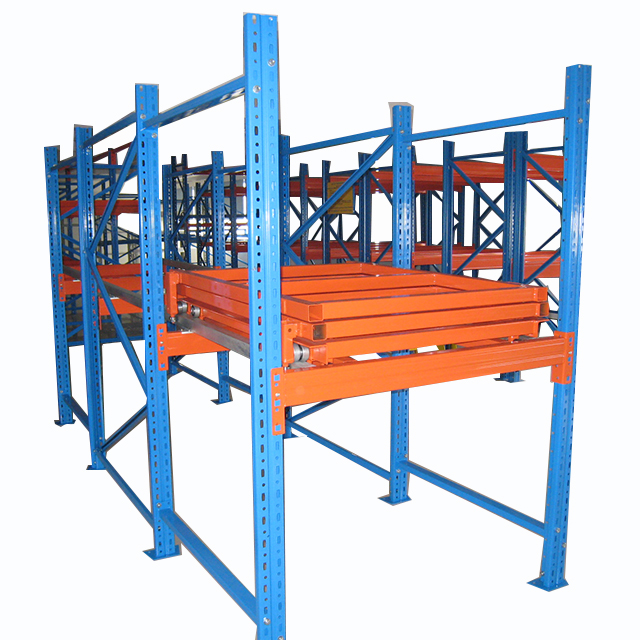

-1111

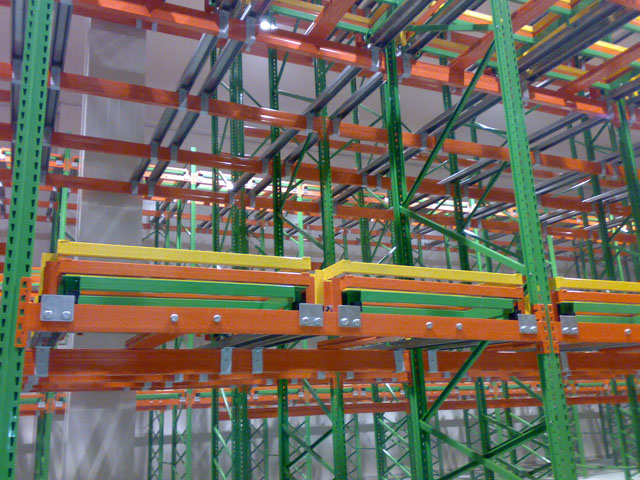

压入式货架2

2

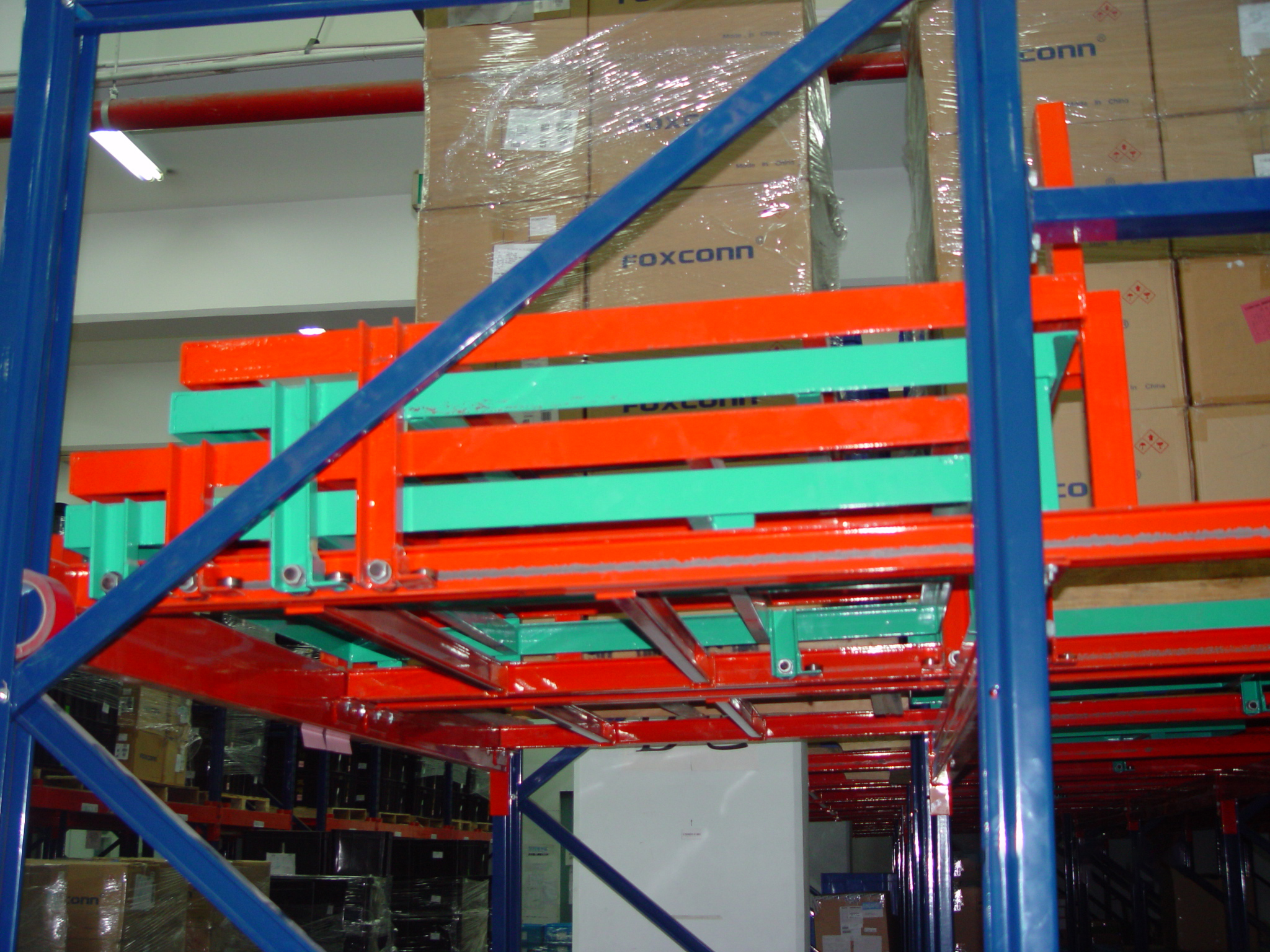

DSC02518

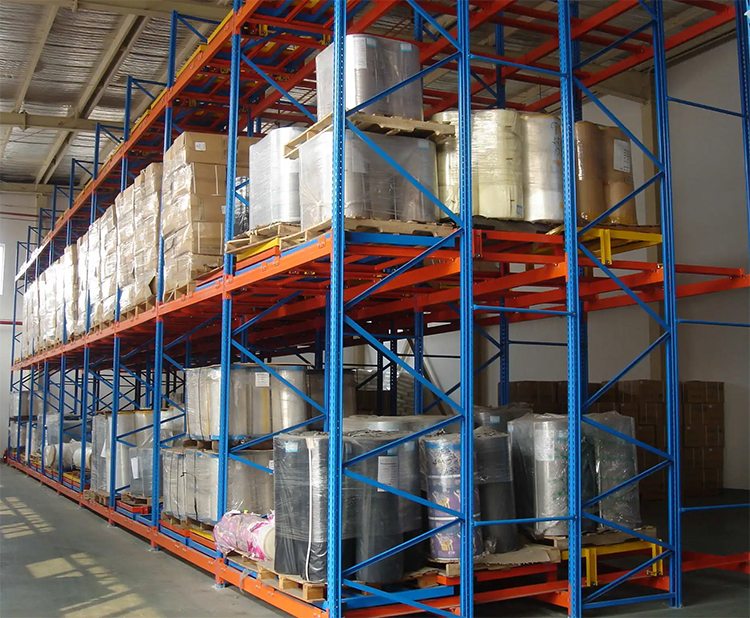

4

11

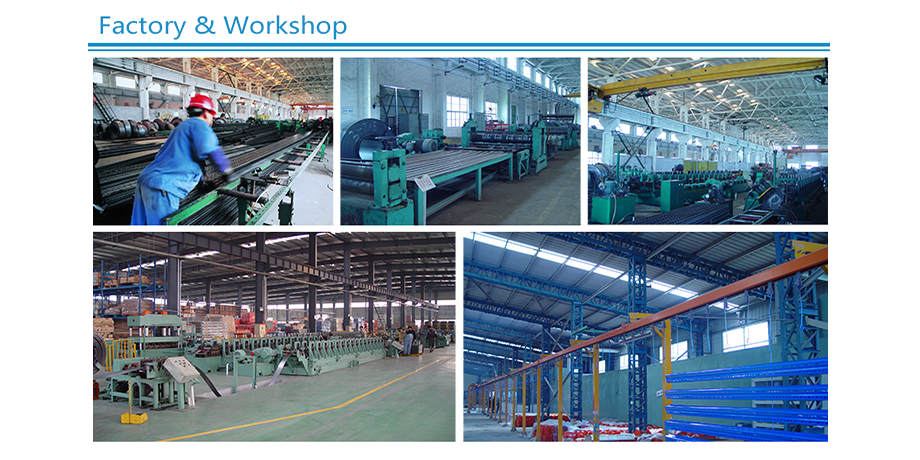

Factory 2

9

证书

a5b1c687e1b4321f2606539ea06c2b4


14
