Intelligent Storage System- AGV Forklift + Gravity Racking

  AGV forklift is an automated logistics equipment that can move, carry and store goods autonomously inside and outside the warehouse. With the rapid development of manufacturing technology, Unmanned AGV forklifts are welcomed by many large factories. This article briefly introduces the working principle, application and advantages of AGV forklifts in intelligent warehousing programme.

   AGV forklift

  AGV forklifts determine their position and path through laser or visual navigation systems, and automatically drive in factories or warehouses. The vehicle is powered by batteries and is equipped with a charging station, which can complete charging automatically. The AGV forklift is with a controller for guiding the movement, turning and load operation of the vehicle.

  AGV unmanned forklifts, as a forklift that replaces manual operations to achieve unmanned operations, can mainly help companies reduce costs, improve work efficiency, and promote a process of transformation of enterprises. It truely a new model of production.

  The equipment automatically carries out handling, loading, unloading and transportation. It reduces costs and improves the speed of circulation at the same time. In addition, smart forklifts are powered by batteries and have low energy consumption, which reduce the transportation cost of the factory. The AGV forklift can automatically adjust the path and transportation route according to the software design, which improves the flexibility of the factory.

  Due to the needs of high-efficiency and low-cost, in the future, manufacturing or logistics industries will definitely adopt unmanned warehouse management. The emergence of AGV unmanned forklifts is more capable than traditional forklifts. It follow the trend of automation.

  Common AGV forklifts have a load capacity of more than 2 tons, especially the AGV pallet forklift, which have a larger load range and are customized according to the needs of different enterprise users. The machine can realize functions such as stacking, handling, and three-way insertion and removal of goods in narrow aisles.

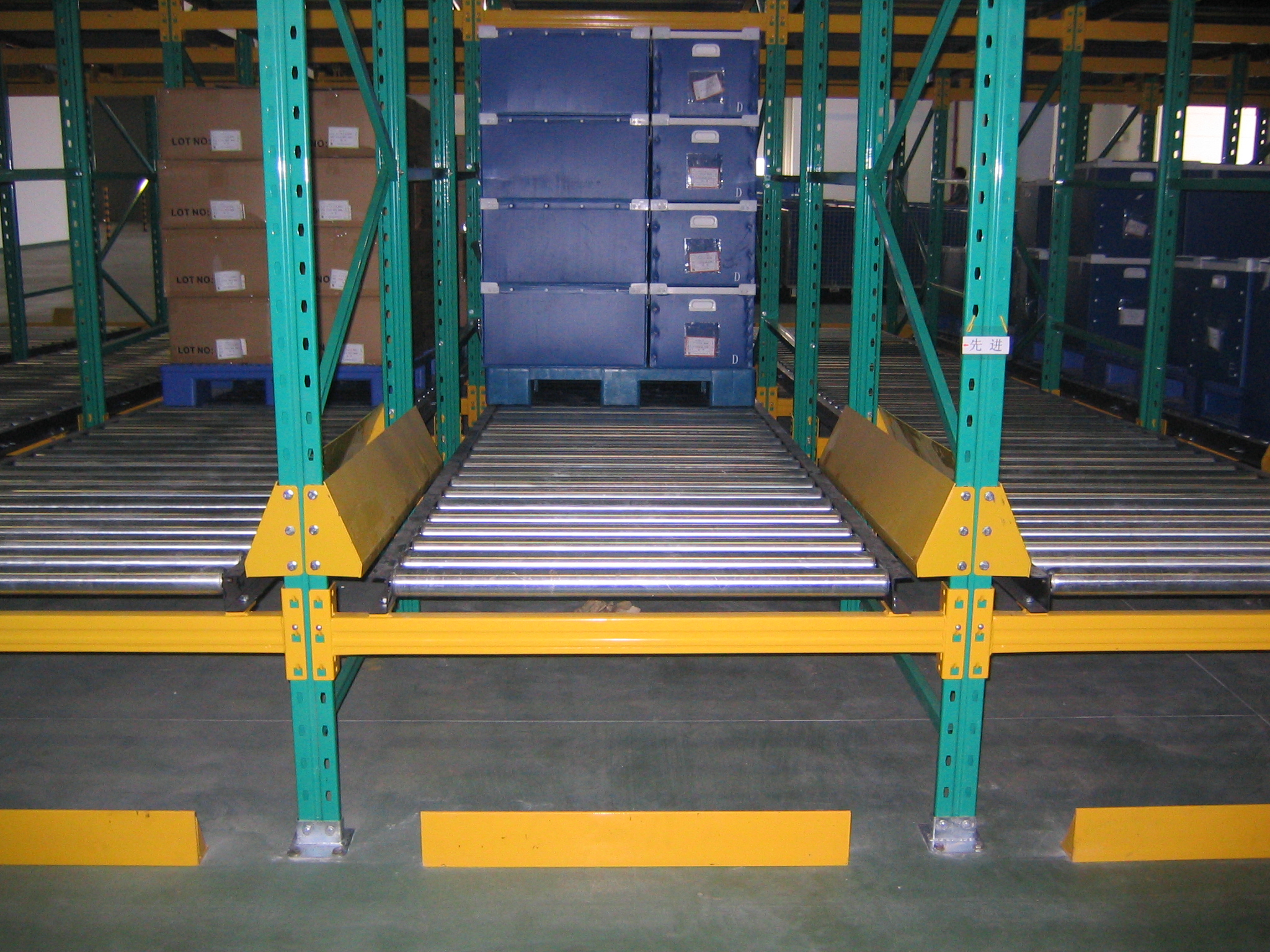

  Gravity Rack

  Gravity racks are also called self-gravity racks or roller racks. The structure of the gravity shelving is similar to that of the beam racking, except that a roller track is installed on the beam, and the track is inclined at 3-5°. The goods move from one end to the lower end to complete delivery.

  This type of shelving adopts the first-in-first-out storage method, which is more suitable for storage operations with pallets as the carrier. The goods are stacked neatly, which provides a better solution for the storage of large and heavy objects. Gravity shelves are suitable for the storage of small varieties and large quantities of similar goods. Since there is no working channel between the two sets of racking, the storage space is increased by half.

  The total depth of the shelving (that is, the length of the guide rail) should not be large, and if the ramp is too long, the controllability of the slide will be poor, which will easily cause blockage, or the tipping of goods. In order to make the slide smoothly, a damping device should be added in the middle. In order to prevent the pallet cargo from tipping over due to excessive impact force when it slides to the bottom, a buffer device and a take-off device should be installed at the lowest point of the ramp. This kind of racking should not be too high, generally within 6 meters, and the weight of a single pallet of goods is generally within 1000KG, otherwise its reliability and operability will be reduced.

  Gravity racking is a kind of intensive racking, which can store goods intensively on a large scale. Compared with the dense storage function of mobile racking, its scale can be made larger. Gravity racks can be used from light-weight small items under 1 kg to pallets and even small containers. Due to the high density, the number of passages is reduced, which can effectively save the area of the warehouse. Forklift running distance can be shortened by 1/3.

  Besides, when goods are in and out, the tools do not cross each other, do not interfere with each other, the accident rate is reduced.

  The storage area of this kind of racking only needs two channels for delivery, and the areas are strictly separated to avoid unnecessary safety hazards caused by cross-operation.

  If there is warehouse to be built, the investment cost of gravity racks is lower than that of automated three-dimensional warehouses, and the manufacturing period is shorter.

  Intelligent storage

  Smart AGV forklifts can be used in industries such as automobiles, electronics, machinery, and food. Through autonomous path planning, obstacle avoidance and task execution, efficient and accurate task execution can be achieved, and logistics efficiency can be greatly improved.

  Intelligent management is the future of the storage industry. Artificial intelligence technology will become more mature, efficient, convenient and will secure intelligent management services.
